Operating Limits:

● Temperature: -20℃ - +220℃

● Pressure：28bar

● Speed: ≤ 15m/s

Materials:

● Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide

● Elastomer: VITON, EPDM, NBR, FFKM, AFLAS

● Metal Part: SS304, SS316, Duplex, Hastelloy C

Assembly Drawing:

Dimensions (mm)

UT-104B
D1	D0	D3	D7	L1	L2	L3	e
16	11	33	33	61	8	45	2
16	11	33	33	61	8	45	2
18	13	35	36	64	11	48	2
20	15	37	40	67	11	48	2
22	17	39	42	70	14	51	2
25	20	42	45	70	14	51	2
28	22	45	48	71	15	52	2
30	25	52	50	77	15	58	3
35	28	57	55	80	17	61	3
40	34	62	60	83	20	64	3
45	38	67	65	89	25	70	3
50	44	72	70	92	28	73	3
55	48	77	75	94	30	75	3
60	52	82	80	94	30	75	3
65	58	92	90	103	35	81	3
70	62	97	97	111	37	86	3
75	66	102	102	111	37	86	3
80	72	107	107	116	42	91	3
85	76	112	112	117	42	92	3
90	82	117	117	118	43	93	3
95	85	122	122	118	43	93	3
100	90	127	127	118	43	93	3
110	100	141	142	144	60	117	3
120	110	151	152	144	80	117	3

Related Introduction

As a kind of rotating shaft dynamic seal, mechanical seal is an important part to prevent leakage, save energy, and control environmental pollution in the produced mechanical equipment. In the past ten years, mechanical seal technology has developed greatly and has been widely used in the fields of electric power, shipbuilding, aerospace, and petrochemical industry.

According to statistics from the petrochemical industry, 80% to 90% of centrifugal pumps use mechanical seals. In industrially developed countries, in the sealing devices of rotating machinery, the amount of mechanical seals accounts for more than 90% of all seals in use. At present, mechanical seal has become the most important form of dynamic seal in fluid sealing technology.

Hot Tags: 104b mechanical seal, China, suppliers, manufacturers, factory, customized, buy, quality, pricelist, quotation, low price, made in China, PTFE Bellows Mechanical Seals, 104 Mechanical Seal, mech seals, C8U Mechanical Seal, pump mechanical seal types, 58U 59U Mechanical Seal

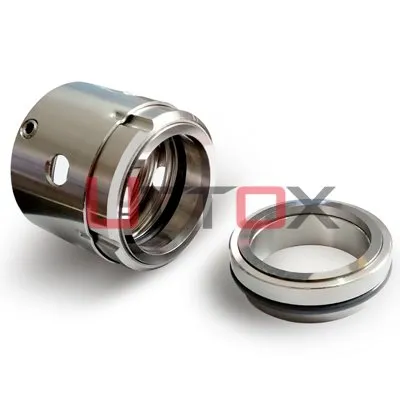

104B Mechanical Seal
