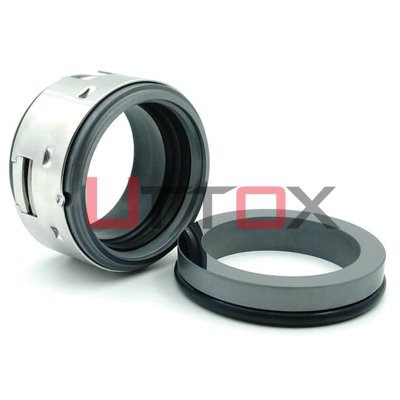

Mechanical Seals for John Crane Type 502, Vulcan Type 1724, Elastomer Bellow Shaft Seals

With a humble, pragmatic and innovative attitude, we respect the corporate policy of efficient management, quality first, and service-oriented to provide customers with superb aes mechanical seals, cartridge type mechanical seal, sealol mechanical seal and quality services. We not only have strict requirements on product quality and service, but also need to communicate with you constantly. We are committed to management innovation, technological innovation, and the courage to assume social responsibility. We shoulder the responsibility bravely and advance towards the internationalization of new comprehensive enterprises. We will steadily improve the scientific management level of the enterprise, and strive to build the company into an enterprise with leading technology, excellent quality, and advanced management.

Equivalent to:

● John Crane Type 502

Operating Limits:

● Temperature:-40℃ - +180℃

● Pressure：≤ 25bar

● Speed: ≤ 15m/s

● Shaft size: 12mm - 100mm

Materials:

● Seal Rings: A,B,Q1/12,Q2/22, U1/12,U2/22

● Elastomer: VITON, EPDM, NBR, FFKM, AFLAS

● Metal Part: SS304

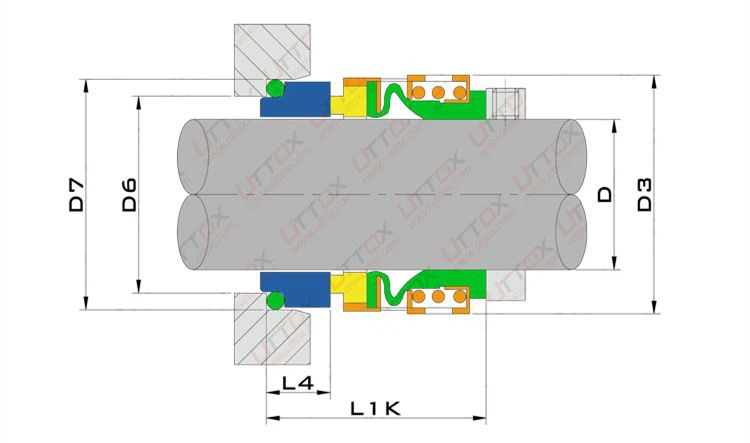

Assembly Dwg:

Dimensions (mm):

D	D3	D6	D7	L1K	L4
12	22.6	18.5	22.5	32.5	12
14	24	21	25	35	12
16	26	23	27	35	12
18	32	27	33	37.5	13.5
20	34	29	35	37.5	13.5
22	36	31	37	37.5	13.5
24	38	33	39	40	13.3
25	39	34	40	40	13
28	42	37	43	42.5	125
30	44	39	45	42.5	12
32	46	42	48	42.5	12
33	46	42	48	42.5	12
35	49	44	50	42.5	12
38	54	49	56	45	13
40	56	51	58	45	13
43	59	54	61	45	13
45	61	56	63	45	13
48	64	59	66	45	13
50	66	62	70	47.5	13.3
55	71	67	75	47.5	13.3
60	80	72	80	52.5	13.3
65	85	77	85	52.5	13.3
70	89	83	92	60	14.5
75	96	88	97	60	14.5
80	104	95	105	60	15
85	108	100	110	60	15
90	114	105	115	65	15
95	118	110	120	65	15
100	124	115	125	65	15

*Related Introduction*

Mechanical seal for solid particle medium pump:

With the development of modern industry, especially the development of oil and gas fields, mining, metallurgy, electric power, papermaking, fine chemicals, salt chemicals, water supply and drainage, sewage treatment, food processing and other industries, more and more pumps are used to transport solid particles. The fluid medium containing solid particles and fibers is very unfavorable to the operation of the mechanical seal of the pump. When the solid particles in the fluid medium enter the end face of the seal, the wear and leakage of the seal face will be aggravated. The solid particles deposited around the seal can also interfere with the function of the seal and cause the seal to fail. Similarly, fibrous substances entering the end face of the seal will also cause serious leakage of the seal.

Yizhou Pump Valve Technology has specially designed and developed different types and models of mechanical seals for this different industrial and mining needs, which can meet the application conditions of different industrial and mining forms. Welcome domestic and foreign customers to negotiate and communicate!

Our Mechanical Seals for John Crane Type 502, Vulcan Type 1724, Elastomer Bellow Shaft Seals with excellent product performance and a wide range of market applications, reflecting a huge market space and development potential. Our company has an international vision to understand the scientific and technological trends of developed countries, learn from the experience of other countries, and provide us with new development ideas. We combine our own scientific and humane management system, and have stabilized a dynamic enterprise team.
