Equivalent to:

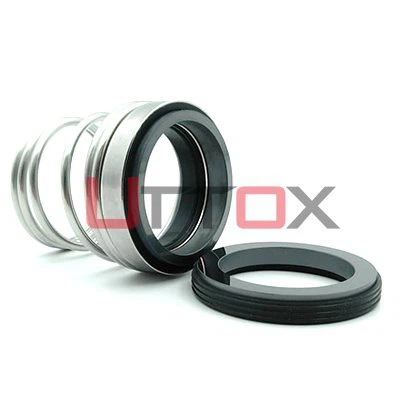

● John Crane Type 1
Operating Limits:
● Temperature:-40℃ - +200℃
● Pressure：≤ 17bar
● Speed: ≤ 13m/s
● Shaft size: 1"- 3.5"
Materials:
● Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
● Elastomer: VITON, EPDM, NBR, FFKM, AFLAS
● Metal Part: SS304, SS316, Duplex, Hastelloy C
Assembly Drawing:
Dimensions (mm):
| Size(inch) | D1 | D3 | D7 | L1 | L3 |
| 1.000 | 25.4 | 38.1 | 41.275 | 50.77 | 11.1 |
| 1.125 | 28.575 | 41.5 | 44.45 | 52.4 | 11.1 |
| 1.250 | 31.75 | 46 | 47.625 | 52.4 | 11.1 |
| 1.375 | 34.925 | 47.6 | 50.8 | 53.9 | 11.1 |
| 1.438 | 36.5 | 50.8 | 53.975 | 53.9 | 11.1 |
| 1.500 | 38.1 | 50.8 | 53.975 | 53.9 | 11.1 |
| 1.625 | 41.275 | 57.2 | 60.325 | 63.5 | 12.7 |
| 1.750 | 44.45 | 60.5 | 63.5 | 63.5 | 12.7 |
| 1.875 | 47.625 | 63.5 | 66.675 | 66.7 | 12.7 |
| 2.000 | 50.8 | 66.7 | 69.85 | 66.7 | 12.7 |
| 2.125 | 53.975 | 71.4 | 76.2 | 74.6 | 14.3 |
| 2.250 | 57.15 | 74.6 | 79.375 | 74.6 | 14.3 |
| 2.375 | 60.325 | 77.8 | 82.55 | 77.8 | 14.3 |
| 2.500 | 63.5 | 81 | 85.725 | 77.8 | 14.3 |
| 2.625 | 66.675 | 85.7 | 85.725 | 85.75 | 15.9 |
| 2.750 | 69.85 | 88.9 | 88.9 | 85.75 | 15.9 |
| 2.875 | 73.025 | 92 | 95.25 | 88.9 | 15.9 |
| 3.000 | 76.2 | 95.2 | 98.425 | 88.9 | 15.9 |
| 3.500 | 88.9 | 111.1 | 111.1 | 99.18 | 19.8 |
Related Introduction
Performance requirements of mechanical seal materials:
(1) With certain mechanical properties, mechanical shaft seals such as tensile strength, elongation, etc.;
(2) Appropriate elasticity and hardness, small compression set;
(3) High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
(4) It is compatible with the working medium and does not produce swelling, mechanical seal, decomposition, hardening, etc.;
(5) Good oxygen resistance and aging resistance, durable;
(6) Wear-resistant and non-corrosive to metals;
(7) Easy to shape and process, low price;
