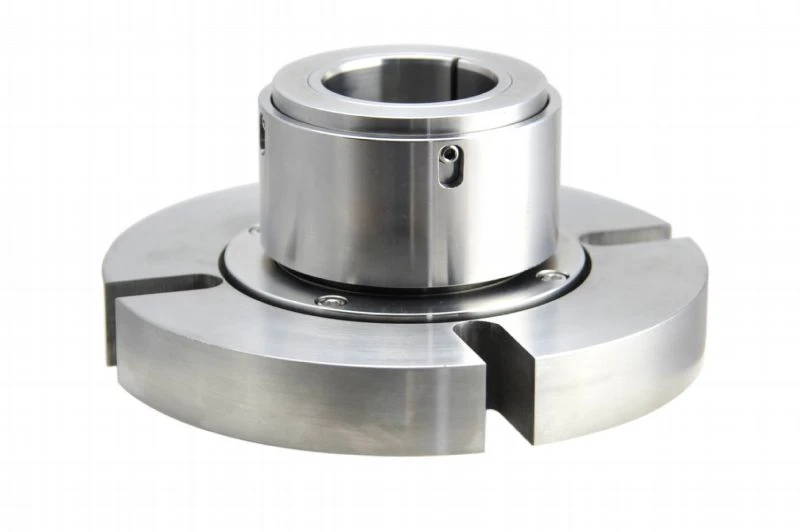

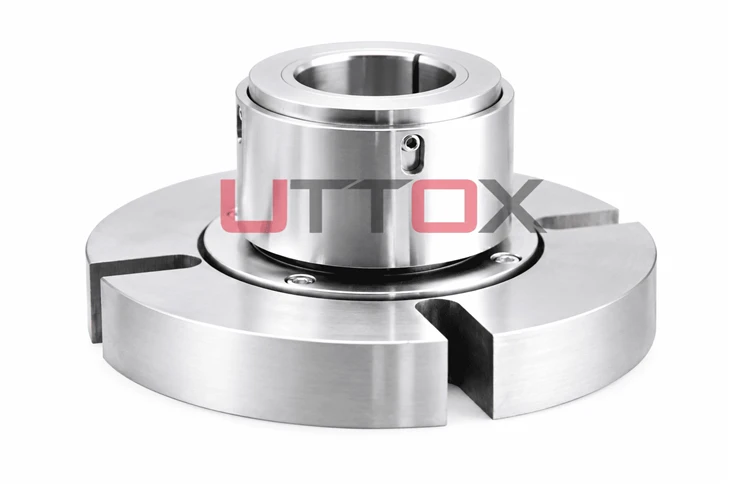

SeccoMix Dry Running Agitator Mechanical Seal

A: No. The UTTOX SeccoMix series is a fully flush-free dry-running seal. It relies on passive internal air circulation for cooling and requires no external Plan 52/53 auxiliary systems, completely eliminating liquid contamination to process media and simplifying on-site piping layout.

A: UTTOX SeccoMix 1 is the standard single-ended model designed for top-entry agitators, featuring compact semi-cartridge structure and fast plug-and-play installation. UTTOX SeccoMix R is optimized for side-entry, bottom-entry and horizontal vacuum dryers, supporting nitrogen-pressurized dual seal configuration for higher process safety and harsh working conditions.

A: Yes. The proprietary internal air cooling structure effectively dissipates frictional heat, enabling stable and silent long-term dry-running operation. It avoids overheating failure and squeaking noise that commonly occurs in conventional dry seals, maintaining consistent long-term operating stability.

A: Standard operating temperature ranges from -20 °C to 200 °C; with an optional cooling flange, the maximum temperature can reach 250 °C. The working pressure covers vacuum up to 6 bar(g), fully matching the parameter range of the original EagleBurgmann version for diverse batch stirring and vacuum drying processes.

A: Absolutely. The wetted parts adopt FDA-compliant carbon graphite and silicon carbide materials with smooth, dead-space-free surfaces. It fully meets sanitary production requirements and supports high-purity processing in pharmaceutical and food & beverage industries.

A: Yes. The seal complies with ATEX Zone 0 and TA-Luft compliance standards. It features structurally intrinsic safety and can be used in explosive environments without additional temperature monitoring devices.

A: Yes. Equipped with friction-locked shaft drive design, it effectively tolerates regular axial and radial shaft displacement and runout, perfectly adapting to the dynamic working characteristics of industrial agitators and avoiding seal damage caused by shaft deviation.

A: Yes. The seal supports forward and reverse bidirectional rotation, with no need to confirm rotation direction during installation, greatly improving installation flexibility for different equipment layouts.

A: UTTOX SeccoMix is equipped with a built-in visual wear indicator. On-site operators can directly check the remaining wear allowance without disassembly, realizing predictive maintenance and avoiding unplanned production downtime.

A: It is designed for low-speed stirring conditions with a maximum sliding speed of 2 m/s. It is not recommended for high-speed rotating equipment or media with large particle abrasion and strong corrosiveness. For special working conditions, customized configuration is available.

A: Yes. UTTOX SeccoMix achieves 100% full compatibility and perfect replacement for the original EagleBurgmann SeccoMix mechanical seal. It adopts identical structural design, installation dimensions, material standards and operating parameters, enabling direct plug-and-play replacement without any equipment modification. With extremely stable product quality, consistent sealing performance and far superior cost performance, it effectively reduces procurement and maintenance costs while completely matching the original equipment operating standards, being the ideal upgraded alternative solution for original imported seals.
