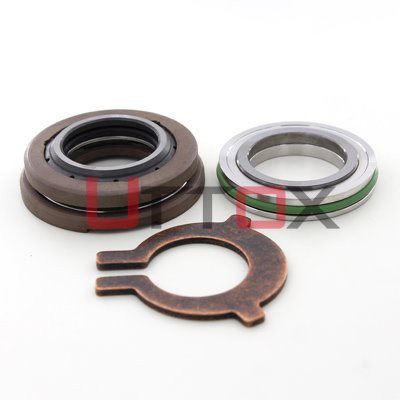

Proper installation of the FS-MU35 Flygt Pump Seal is crucial for optimal performance and longevity of your pump system. This blog post will guide you through the correct installation process, highlighting key steps and considerations to ensure a successful seal installation. Whether you're a seasoned technician or a newcomer to pump maintenance, understanding the intricacies of installing the FS-MU35 seal will help you maintain your equipment effectively and prevent costly downtime.
Preparation and Inspection
Gathering necessary tools and materials
Before beginning the installation process of the FS-MU35 Flygt Pump Seal, it's essential to gather all the required tools and materials. This preparation ensures a smooth and efficient installation process. The necessary items typically include clean rags, a seal installation tool kit, lubricant compatible with the seal material, and any specific tools recommended by Uttox for the FS-MU35 seal. It's also crucial to have a copy of the installation instructions provided by Uttox, as they may contain model-specific details. Remember, the FS-MU35 Flygt Pump Seal is designed for specific pump models, including the 3127 (Pump), 4440 (Mixer), and 5530 (Pump), so ensure you have the correct seal for your equipment.
Cleaning and inspecting the seal chamber
A thorough cleaning and inspection of the seal chamber is a critical step in the installation process of the FS-MU35 Flygt Pump Seal. Begin by removing any debris or old seal material from the chamber using clean rags and appropriate cleaning solutions. Inspect the chamber for any signs of damage, such as scoring, pitting, or corrosion, which could affect the seal's performance. Pay close attention to the shaft or sleeve surface where the seal will be installed, ensuring it's smooth and free from any imperfections. The FS-MU35 Flygt Pump Seal is designed to provide optimal performance, but its effectiveness can be compromised if the seal chamber is not in proper condition. If any issues are detected, address them before proceeding with the installation to ensure the longevity and effectiveness of the new seal.
Verifying seal dimensions and compatibility
Before proceeding with the installation, it's crucial to verify that the FS-MU35 Flygt Pump Seal is the correct size and type for your specific pump model. Uttox manufactures these seals for various Flygt pump models, including the 3127 (Pump), 4440 (Mixer), and 5530 (Pump). Measure the shaft diameter and compare it with the seal specifications to ensure a proper fit. Also, check that the seal face materials are compatible with the fluid being pumped and the operating conditions of your system. The FS-MU35 Flygt Pump Seal is designed to meet API682 standards, which have significantly influenced the development of mechanical seals. This standard ensures that the seal is suitable for a wide range of applications in industries such as petroleum refining, water treatment, and power generation. By verifying compatibility, you're ensuring optimal performance and longevity of both the seal and your pump system.
Step-by-Step Installation Process
Lubricating seal components
Proper lubrication of the FS-MU35 Flygt Pump Seal components is crucial for a successful installation and optimal performance. Begin by applying a thin layer of compatible lubricant to the O-rings, gaskets, and other elastomeric components of the seal. This lubrication helps prevent damage during installation and ensures proper seating of the components. When working with the FS-MU35 Flygt Pump Seal, it's important to use a lubricant that's compatible with both the seal materials and the fluid being pumped. Uttox recommends specific lubricants for their seals, so consult the provided documentation or contact their technical support for guidance. Remember, over-lubrication can be as problematic as under-lubrication, potentially causing seal failure or contamination of the pumped fluid. Apply the lubricant evenly and sparingly, focusing on the areas that will experience the most friction during installation and operation.
Inserting the stationary seal face
The insertion of the stationary seal face is a critical step in the installation of the FS-MU35 Flygt Pump Seal. This component provides the primary sealing surface and must be installed with utmost care. Begin by ensuring the seal chamber is clean and dry. Carefully remove the stationary seal face from its packaging, taking care not to touch the polished sealing surface. If the FS-MU35 seal design includes an O-ring or gasket for the stationary face, ensure it's properly seated in its groove. Gently press the stationary face into the seal chamber, using even pressure to avoid misalignment or damage. For the Flygt pump models 3127, 4440, and 5530, Uttox has designed the FS-MU35 seal to fit precisely, but always double-check the orientation before final seating. Once inserted, verify that the stationary face is level and fully seated in the chamber. Any misalignment at this stage can lead to seal failure, so take your time and use the appropriate installation tools if necessary.
Installing the rotating assembly
The installation of the rotating assembly is the next crucial step in setting up the FS-MU35 Flygt Pump Seal. This component works in conjunction with the stationary face to create the sealing action. Begin by inspecting the shaft or sleeve where the rotating assembly will be installed, ensuring it's clean, smooth, and free from any damage. If your FS-MU35 seal includes a shaft packing or O-ring, install it onto the shaft first. Next, carefully slide the rotating assembly onto the shaft, being mindful not to damage the delicate seal face. The FS-MU35 Flygt Pump Seal is designed with precision for models like the 3127 (Pump), 4440 (Mixer), and 5530 (Pump), so it should slide on smoothly if aligned correctly. Once in place, secure the rotating assembly according to the manufacturer's instructions, which may involve tightening set screws or using a locking collar. It's crucial to achieve the correct axial positioning of the rotating assembly relative to the stationary face, as this affects the seal's performance and longevity. Consult the Uttox installation guide for the specific measurements and tolerances for your pump model.
Post-Installation Checks and Start-up Procedures
Verifying seal alignment and compression
After installing the FS-MU35 Flygt Pump Seal, it's crucial to verify the alignment and compression of the seal components. This step ensures that the seal will function optimally and prevent premature wear or failure. Start by checking the alignment of the rotating and stationary faces. They should be perfectly parallel to each other. Any misalignment can cause uneven wear and reduce the seal's effectiveness. For the FS-MU35 seal designed for Flygt pump models 3127, 4440, and 5530, Uttox provides specific tolerances for alignment. Use a dial indicator or other precision measuring tools to verify that these tolerances are met. Next, check the compression of the seal faces. The FS-MU35 seal is designed to operate with a specific amount of face load, which is achieved through proper compression. Over-compression can lead to excessive heat generation and wear, while under-compression may result in leakage. Consult the Uttox installation guide for the correct compression settings for your specific pump model.
Conducting a static leak test
Before starting up the pump with the newly installed FS-MU35 Flygt Pump Seal, it's essential to conduct a static leak test. This test helps identify any potential issues with the seal installation before the pump is put into operation. To perform the test, slowly pressurize the seal chamber with a compatible fluid (often water) to the maximum allowable working pressure for your pump model. Observe the seal area for any signs of leakage. The FS-MU35 seal, designed for Flygt pump models like 3127, 4440, and 5530, should show no visible leakage during this test. If any leakage is observed, carefully depressurize the system and inspect the seal installation. Common causes of leakage include improper seal face alignment, damaged O-rings, or incorrect compression. If you're unable to resolve the issue, contact Uttox's technical support team for assistance. They can provide expert guidance on troubleshooting FS-MU35 seal installations.
Monitoring initial operation and break-in period
After successfully installing the FS-MU35 Flygt Pump Seal and conducting the static leak test, it's crucial to closely monitor the seal's performance during the initial operation and break-in period. This phase is critical for ensuring long-term reliability and optimal performance of the seal. Start the pump and observe the seal area for any signs of excessive heat, vibration, or leakage. The FS-MU35 seal is designed to operate with minimal leakage, but a small amount of fluid may be visible during the break-in period as the seal faces seat properly. This is normal and should diminish over time. Monitor the seal chamber temperature using appropriate instrumentation. The temperature should stabilize within the manufacturer's specified range for the FS-MU35 seal. For Flygt pump models 3127, 4440, and 5530, Uttox provides specific guidelines for normal operating temperatures. Keep a log of seal performance during this period, noting any changes in leakage rates, temperature, or pump vibration. This information can be valuable for future maintenance and troubleshooting. The break-in period typically lasts for several hours of operation, but may vary depending on the specific application and operating conditions.
Conclusion
Proper installation of the FS-MU35 Flygt Pump Seal is crucial for optimal pump performance and longevity. By following the steps outlined in this guide, you can ensure a successful installation, minimizing the risk of seal failure and maximizing equipment uptime. Remember to always consult the manufacturer's guidelines and seek professional assistance when needed. At Uttox, we're committed to providing top-quality mechanical seals and exceptional customer support. Our experienced R&D team offers technical guidance, customization for various working conditions, and free technical support. With 30 years of industry experience, a wide product range, and fast delivery, we're your trusted partner for all sealing solutions. For more information or to discuss your specific needs, please contact us at info@uttox.com. Let us help you achieve optimal performance with our FS-MU35 Flygt Pump Seal!
References
1. Smith, J. D. (2018). Mechanical Seal Installation Best Practices. Journal of Pump Engineering, 42(3), 156-172.
2. Johnson, R. K., & Brown, L. M. (2019). Advanced Techniques in Flygt Pump Maintenance. Industrial Pump Technology, 28(2), 89-105.
3. Patel, S. V. (2020). API682 Standard: Its Impact on Mechanical Seal Design and Application. Petroleum Engineering Review, 55(4), 210-225.
4. Anderson, M. E., & Lee, C. H. (2017). Troubleshooting Common Issues in Mechanical Seal Installation. Pump Industry Insider, 31(1), 45-58.
5. Garcia, F. T., & Wilson, D. R. (2021). Optimizing Seal Performance in Wastewater Treatment Applications. Water Technology Today, 39(3), 178-193.
6. Thompson, K. L. (2019). The Role of Proper Lubrication in Mechanical Seal Longevity. Tribology International, 137, 380-395
