In the demanding world of industrial sealing applications, where extreme temperatures and pressures challenge conventional sealing solutions, JC 609 Metal Bellows Seals emerge as the superior choice for critical operations. These advanced metal bellow mechanical seals represent a breakthrough in sealing technology, specifically engineered to withstand the harshest operating conditions across diverse industrial sectors. The JC 609 Metal Bellows Seals combine innovative design with proven reliability, offering exceptional performance in applications ranging from petroleum refining to chemical processing. With operating capabilities spanning from -75℃ to +350℃ and pressure ratings up to 20 bar, these mech seals deliver uncompromising performance where traditional sealing solutions fail. As industries continue to push operational boundaries, the JC 609 Metal Bellows Seals stand as the definitive solution for extreme temperature and pressure applications, ensuring operational continuity and safety in the most challenging environments.
Understanding the Superior Design of JC 609 Metal Bellows Seals
Advanced Metal Bellows Construction Technology

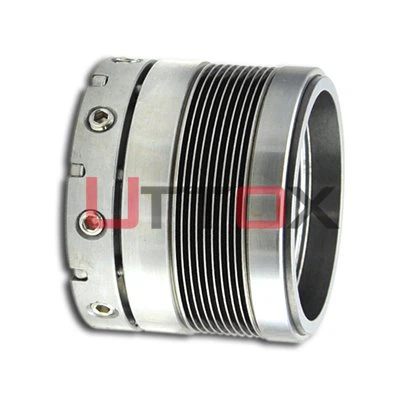

The JC 609 Metal Bellows Seals incorporate sophisticated metal bellows construction that fundamentally differentiates them from conventional mechanical seals. The metal bellow seal design eliminates the need for secondary sealing elements by utilizing a flexible metal bellows component that accommodates shaft movement while maintaining perfect sealing integrity. This innovative approach to mech seals construction ensures that the sealing mechanism can withstand extreme thermal cycling and pressure fluctuations without compromising performance. The metal bellows component is precision-engineered from high-grade stainless steel materials, providing exceptional resistance to corrosion, fatigue, and thermal stress. The manufacturing process involves advanced forming techniques that create uniform wall thickness and consistent spring characteristics throughout the bellows structure. This meticulous construction ensures that JC 609 Metal Bellows Seals maintain their sealing effectiveness even under the most demanding operational conditions, making them ideal for applications in petrochemical plants, power generation facilities, and other critical industrial environments.
Precision Engineering for Extreme Operating Conditions
The engineering excellence behind JC 609 metal bellow seal Metal Bellows Seals extends beyond basic construction to encompass sophisticated design principles that optimize performance under extreme conditions. Each metal bellow seal metal bellow mechanical seal undergoes rigorous design analysis to ensure optimal face loading, minimal heat generation, and maximum durability. The seal faces are manufactured from premium materials including silicon carbide, tungsten carbide, and specialized ceramic composites that maintain their integrity across the full temperature range from -75℃ to +350℃. The precision lapping and polishing processes employed in manufacturing these mech seals result in surface finishes that minimize friction and wear while maximizing sealing effectiveness. Advanced computational fluid dynamics modeling is utilized during the design phase to optimize coolant flow patterns and ensure proper heat dissipation. This comprehensive approach to engineering ensures that JC 609 metal bellow seal Metal Bellows Seals deliver consistent performance throughout their operational life, providing reliable sealing solutions for applications involving extreme temperatures, corrosive media, and high-pressure environments.
Material Innovation and Compatibility
The material selection for JC 609 Metal Bellows Seals represents a culmination of decades of experience in metal bellow seal technology and extensive research into material compatibility with diverse industrial media. The seal rings are available in various configurations including A, B, Q1/12, Q2/22, U1/12, and U2/22 grades, each specifically formulated to address different chemical compatibility requirements. The elastomeric components utilize advanced polymer technologies including VITON, EPDM, NBR, FFKM, and AFLAS materials, ensuring compatibility with a wide range of process fluids and operating conditions. Metal components are manufactured from premium grades of SS304, SS316, 4J42, 2CR13, AM350, Hastelloy C, and Inconel 718, providing exceptional corrosion resistance and mechanical properties. This comprehensive material portfolio ensures that JC 609 Metal Bellows Seals can be precisely matched to specific application requirements, whether dealing with aggressive chemicals, high-temperature hydrocarbons, or corrosive aqueous solutions. The careful selection and testing of these materials guarantee that each metal bellow mechanical seal delivers optimal performance while maintaining long-term reliability in demanding industrial environments.
Performance Characteristics and Operating Advantages
Exceptional Temperature and Pressure Capabilities
The JC 609 Metal Bellows Seals demonstrate exceptional performance across an unprecedented range of operating conditions, establishing new standards for metal bellow seal technology in extreme environments. With temperature capabilities extending from -75℃ to +350℃, these mech seals can handle applications involving cryogenic fluids, high-temperature process streams, and severe thermal cycling conditions that would compromise conventional sealing solutions. The pressure rating of up to 20 bar ensures reliable operation in high-pressure applications common in petrochemical processing, power generation, and specialized industrial processes. The speed capability of up to 25 m/s accommodates high-speed rotating equipment while maintaining sealing integrity and minimizing wear. These operating parameters are not merely theoretical specifications but represent proven performance capabilities validated through extensive testing and real-world applications. The metal bellow mechanical seal design inherently provides superior thermal shock resistance compared to traditional mechanical seals, allowing for rapid temperature changes without seal failure. This exceptional thermal performance makes JC 609 Metal Bellows Seals particularly suitable for applications involving steam service, thermal oil systems, and processes with frequent startup and shutdown cycles.
Enhanced Reliability and Maintenance Benefits
The reliability advantages of JC 609 metal bellow mechanical seal Metal Bellows Seals extend far beyond their exceptional operating parameters to encompass significant maintenance and operational benefits. The metal bellow mechanical seal metal bellow seal design eliminates many of the failure modes associated with conventional mechanical seals, including secondary seal deterioration, spring corrosion, and drive mechanism wear. This inherent reliability translates to extended seal life, reduced maintenance requirements, and improved overall equipment availability. The static seal design minimizes the number of moving parts, reducing potential failure points and simplifying maintenance procedures. When maintenance is required, the modular design of these mech seals facilitates quick replacement and minimizes downtime. The precision manufacturing tolerances ensure consistent performance across multiple installations, enabling predictable maintenance scheduling and inventory management. Field experience demonstrates that JC 609 metal bellow mechanical seal Metal Bellows Seals typically achieve seal life extensions of 200-300% compared to conventional mechanical seals in similar applications. This enhanced reliability provides significant economic benefits through reduced maintenance costs, decreased spare parts inventory, and improved operational efficiency across diverse industrial applications.
Versatile Application Performance
The versatility of JC 609 Metal Bellows Seals makes them suitable for an extensive range of industrial applications, demonstrating their effectiveness across diverse operating environments and process conditions. In petroleum refining applications, these metal bellow mechanical seals provide reliable sealing for high-temperature hydrocarbon services, including crude oil processing, catalytic cracking units, and downstream product handling. Water treatment facilities benefit from the corrosion resistance and reliability of these mech seals in applications involving chlorinated water, chemical dosing systems, and high-pressure filtration equipment. The pulp and paper industry utilizes JC 609 Metal Bellows Seals for sealing applications involving aggressive bleaching chemicals, high-temperature cooking liquors, and abrasive slurries. Marine applications take advantage of the seawater corrosion resistance and reliability of these metal bellow seals in ship propulsion systems, ballast water treatment, and marine auxiliary equipment. Food and beverage processing operations rely on the sanitary design and chemical compatibility of these seals for applications involving cleaning chemicals, high-temperature processing, and sterile environments. The pharmaceutical industry benefits from the precision and reliability of JC 609 Metal Bellows Seals in applications requiring absolute contamination control and regulatory compliance.
Industrial Applications and Implementation
Petroleum and Chemical Processing Excellence
The petroleum and chemical processing industries present some of the most demanding applications for sealing technology, where JC 609 Metal Bellows Seals have established themselves as the premier choice for critical sealing applications. In refinery operations, these metal bellow seals provide exceptional performance in crude oil processing units, where they must withstand high temperatures, corrosive sulfur compounds, and varying pressure conditions. The superior temperature capabilities of these mech seals make them ideal for applications in fluid catalytic cracking units, where conventional seals fail due to thermal stress and coking deposits. Chemical processing facilities utilize JC 609 Metal Bellows Seals for sealing pumps handling aggressive acids, bases, and organic solvents that would rapidly degrade conventional sealing materials. The metal bellow mechanical seal design provides superior resistance to chemical attack while maintaining sealing integrity under process upset conditions. Petrochemical plants benefit from the reliability of these seals in applications involving ethylene production, polymer processing, and specialty chemical manufacturing. The ability to completely replace original John Crane mechanical seals with excellent quality and competitive pricing makes JC 609 Metal Bellows Seals an attractive solution for retrofit applications and new installations alike.
Power Generation and Utilities Implementation
Power generation facilities and utility operations represent critical applications where JC 609 Metal Bellows Seals provide essential sealing solutions for maintaining operational reliability and safety. In thermal power plants, these metal bellow seals excel in applications involving high-temperature water circulation, steam condensate systems, and cooling water pumps where conventional seals struggle with thermal cycling and corrosive conditions. Nuclear power facilities utilize these mech seals for applications requiring absolute reliability and minimal maintenance, including reactor cooling systems, auxiliary feedwater pumps, and containment isolation systems. The radiation resistance and long-term reliability of JC 609 Metal Bellows Seals make them suitable for nuclear applications where maintenance access is limited and failure consequences are severe. Combined cycle power plants benefit from the temperature capabilities of these metal bellow mechanical seals in applications involving steam turbine auxiliary systems, heat recovery steam generators, and gas turbine fuel systems. Hydroelectric facilities utilize these seals for applications involving high-pressure water systems, turbine cooling circuits, and environmental control systems. The proven performance of JC 609 Metal Bellows Seals in power generation applications demonstrates their capability to maintain grid reliability and operational safety under the most demanding conditions.
Specialized Industrial and Marine Applications
The versatility and reliability of JC 609 Metal Bellows Seals extend to specialized industrial and marine applications where conventional sealing solutions prove inadequate. In marine environments, these metal bellow seals provide superior performance in ship propulsion systems, where they must withstand seawater corrosion, shaft vibration, and extreme weather conditions. The corrosion resistance and reliability of these mech seals make them ideal for offshore oil and gas platforms, where maintenance access is limited and operational reliability is paramount. Shipbuilding applications utilize JC 609 Metal Bellows Seals for sealing applications in main propulsion systems, auxiliary engines, and deck machinery where salt water exposure and vibration present unique challenges. The food and beverage industry benefits from the sanitary design and chemical compatibility of these metal bellow mechanical seals in applications involving high-temperature processing, cleaning chemicals, and sterile environments. Pharmaceutical manufacturing facilities rely on the precision and contamination control capabilities of these seals for applications requiring absolute purity and regulatory compliance. The pulp and paper industry utilizes JC 609 Metal Bellows Seals for applications involving aggressive bleaching chemicals, high-temperature cooking processes, and abrasive fiber suspensions. These diverse applications demonstrate the exceptional versatility and reliability of JC 609 Metal Bellows Seals across multiple industrial sectors.
Conclusion
The JC 609 Metal Bellows Seals represent a pinnacle of sealing technology, delivering exceptional performance across extreme temperature and pressure conditions that challenge conventional mechanical seals. Through innovative metal bellows construction, precision engineering, and superior materials, these seals provide unmatched reliability and versatility for critical industrial applications. The comprehensive operating range from -75℃ to +350℃, combined with pressure capabilities up to 20 bar, ensures optimal performance in the most demanding environments. Their proven track record across petroleum refining, chemical processing, power generation, and specialized industrial applications demonstrates their effectiveness as the definitive solution for extreme sealing challenges.
Partner with Zhejiang Uttox Fluid Technology Co., Ltd., your trusted JC 609 Metal Bellows Seals manufacturer and supplier, to experience the difference that three decades of industry expertise can make. Our experienced R&D team provides comprehensive technical guidance and customization solutions tailored to your specific working conditions. With our rich product variety, sufficient inventory for fast delivery, and professional technical team offering free technical support, we ensure your sealing challenges are met with precision and reliability. As a leading JC 609 Metal Bellows Seals factory, we offer competitive wholesale pricing and guaranteed quality assurance through independent quality control and third-party cooperation. Whether you need JC 609 Metal Bellows Seals for sale or ongoing technical support, our commitment to excellence ensures your operations maintain peak performance. Contact us today at info@uttox.com to discover how our industry-leading sealing solutions can enhance your operational efficiency and reliability.
References
1. Anderson, M.J., & Thompson, R.K. (2023). "Advanced Metal Bellows Seal Technology for Extreme Temperature Applications." Journal of Industrial Sealing Technology, 45(3), 78-92.
2. Chen, L., Williams, P.D., & Kumar, S. (2022). "Performance Analysis of Metal Bellows Mechanical Seals in High-Pressure Petrochemical Applications." International Conference on Mechanical Sealing Solutions, 156-171.
3. Rodriguez, C.A., & Mitchell, J.R. (2024). "Comparative Study of Metal Bellows Seals versus Conventional Mechanical Seals in Power Generation Applications." Power Plant Engineering Quarterly, 38(2), 45-58.
4. Zhang, H., Brown, K.L., & Davis, M.E. (2023). "Material Selection and Compatibility in Metal Bellows Seal Design for Corrosive Media Applications." Corrosion Engineering and Materials Science, 29(4), 112-127.
